The Radio Log is a module, which can be called by pressing F8 anywhere in L.A.S.S.I.E.. It will be available if L.A.S.S.I.E. is connected to a Pi-Star with pistarlog2ws installed (green antenna symbol) and subsequently show the DMR radio traffic.

Pi-Star

Installation

Pi-Star has to be installed on a Raspberry Pi (Zero) with a MMDVM HAT. A non-duplex MMDVM HAT is fully sufficient since Pi-Star only can monitor one single frequency and sending is not something this setup is expected to do. See https://www.pistar.uk/downloads/ for download and installation instructions.

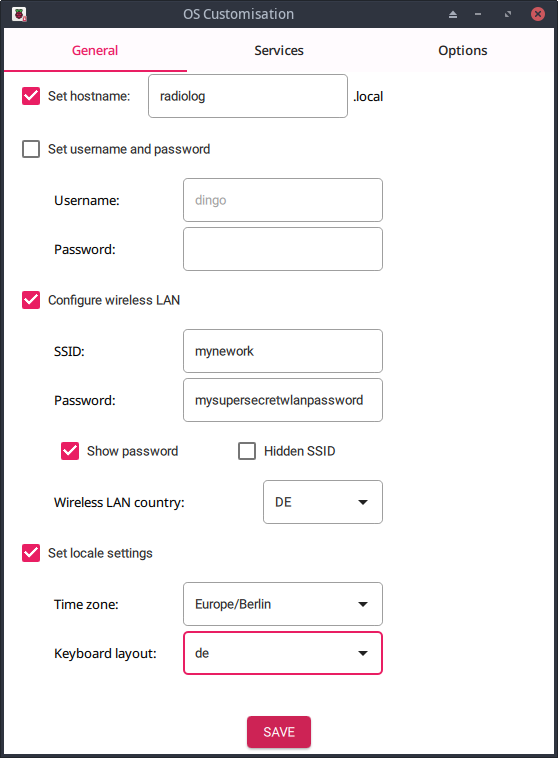

The image downloaded will be flashed to a SD card using the Raspberry Pi Imager. While flashing, when asked if you like to apply OS customization settings, you can set the hostname, the wireless LAN and locale settings. Do not set username and password, or any settings in Services or Options!

After flashing the SD card and booting the Raspberry with it, your Pi-Star should be accessible via webinterface, e.g. https://radiolog.local/admin/

Configuration

After Pi-Star is installed, the following configuration should be done. In the MMDVM
