The Radio Log is a module, which can be called by pressing F8 anywhere in L.A.S.S.I.E.. It will be available if L.A.S.S.I.E. is connected to a Pi-Star with pistarlog2ws installed (green antenna symbol) and subsequently show the DMR radio traffic.

Pi-Star

Installation

Pi-Star has to be installed on a Raspberry Pi (Zero) with a MMDVM HAT. A non-duplex MMDVM HAT is fully sufficient since Pi-Star only can monitor one single frequency and sending is not something this setup is expected to do. See https://www.pistar.uk/downloads/ for download and instructions. The image will be flashed to a SD card using the Raspberry Pi Imager.

Configuration

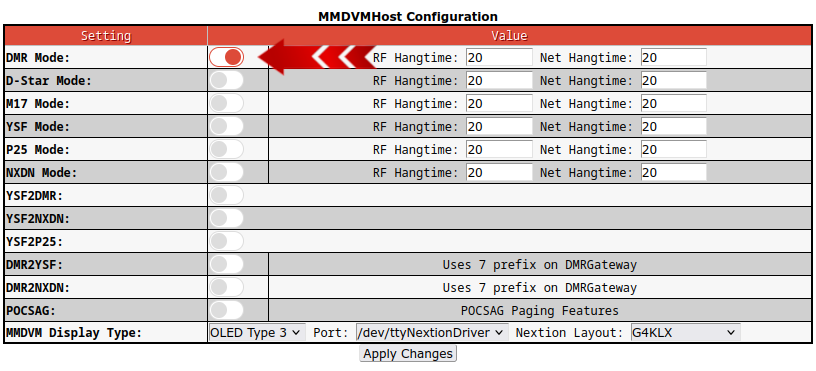

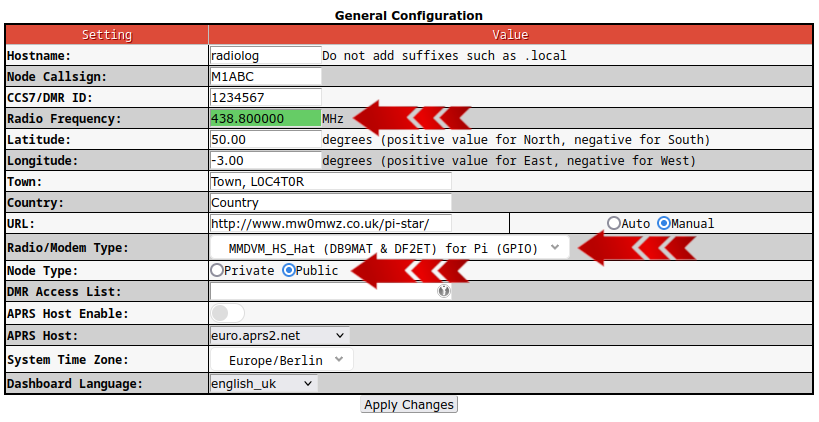

After Pi-Star is installed , the following configuration should be done. To configure the freshly installed Pi-Star, connect to the web interface using your hostname, e.g. http://radiolog.local/admin/.

sername is pi-star, the default password is raspberry.
